Introduction¶
This Node-RED flow is for absolute beginners with minimal Javascript
programming knowledge, who plan to participate in Hackathons.

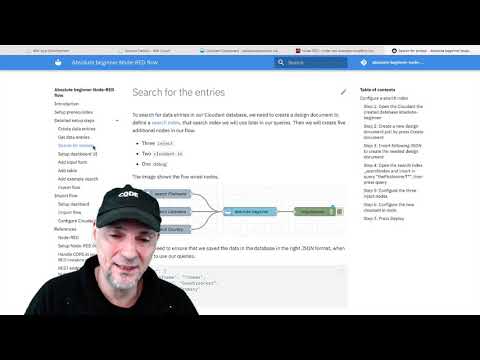

Here a 25 min guide and overview on YouTube
Questions¶
The documentation guides you to following main topics in Node-RED:
How to ...
- ... save data in a database?
- ... search for entries in a database?
- ... display data in a UI?
The flowing gif shows the usage of final flow implementation in Node-RED.
Motivation¶
The motivation for that example project is: When I support Hackathons I notice there's often a lack of programming knowledge and building UIs. If this is the case, then Node-RED is a perfect starting point to realize a prototype at a hackathon. The dashboard of Node-RED is an awesome way to build a UI, but there was a "out of the box" Node missing to simply to add a table. Now I found a very useful Node that’s create a table inside a Node-RED dashboard.
That’s motivated me to create this example project, which provides an example to build a simple application from scratch, which contains the main functionalities to insert data, display data in a table and search for values, as you see in the gif below.
Estimated time and level¶
Time | Level | Topic |
---|---|---|
15 min | beginners | prerequisites |
30 min | beginners | (option 1) build flow absolute beginner from scratch |
10 min | beginners | (option 2) import existing absolute beginner flow |
Objectives¶
After the setup of the example should be able to use your Node-RED instance on IBM Cloud to
- ... save data in a Cloudant database within your Node-RED installation on IBM Cloud
- ... search for data entries using Cloudant database query
- ... display data in a UI using Node-RED dashboard and Node-RED UI Table
Architecture¶
The following diagram shows the simplified architecture of the example Node-RED application.
Prerequisites¶
You should have a ...
- ... free IBM Cloud Lite Account and upgraded to an PayAsYouGo Account
- ... running Node-RED instance on IBM Cloud created with a pre-configured Node-RED App.
